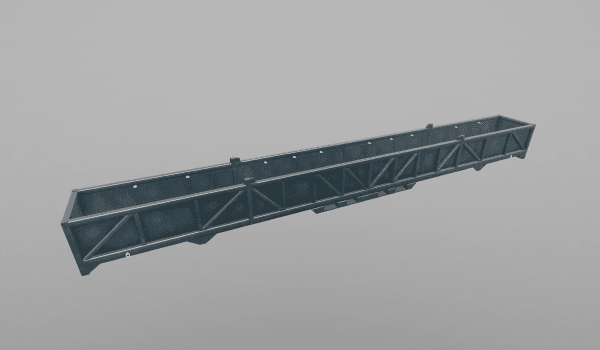

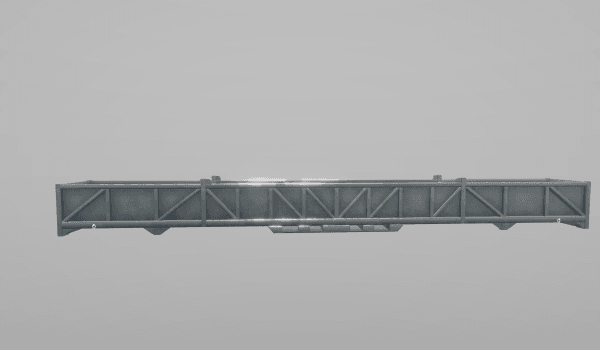

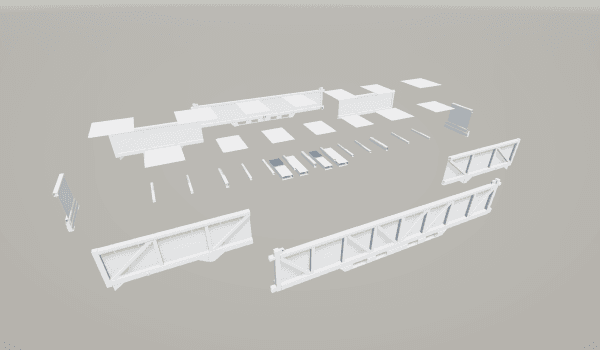

The Offshore 39′ DNV Basket – Free Reference Model is a professional-grade 3D representation of a DNV-compliant offshore cargo basket used for equipment and material handling in offshore environments.
This free reference model provides a visual understanding of the external framing, structural layout, and general proportions of a DNV-ST-E271 certified design. It’s ideal for designers, students, and engineers seeking accurate reference geometry for offshore and fabrication applications.
This free version includes:
-
3D reference model (visual structure and framing)
-
Overview of the design and proportions
-
Non-editable reference for visualization and concept study
The full payable version includes:
-
Complete construction and fabrication drawings
-
Full 3D editable model with detailing references
-
Material specifications (S355J2)
-
Engineering documentation pack for professional use
The full model pack can be purchased and downloaded directly from the vendor’s official profiles.
Usage Terms:
-
✅ Free for learning, design reference, and visualization
-
❌ Not for resale or redistribution
-
❌ Commercial use requires vendor approval
Vendor: SPJ Projects
Category: Offshore Engineering / Cargo Transport Structures
Standard Reference: DNV-ST-E271
Material Grade: S355J2
File Type: 3D Reference Model (Free)
